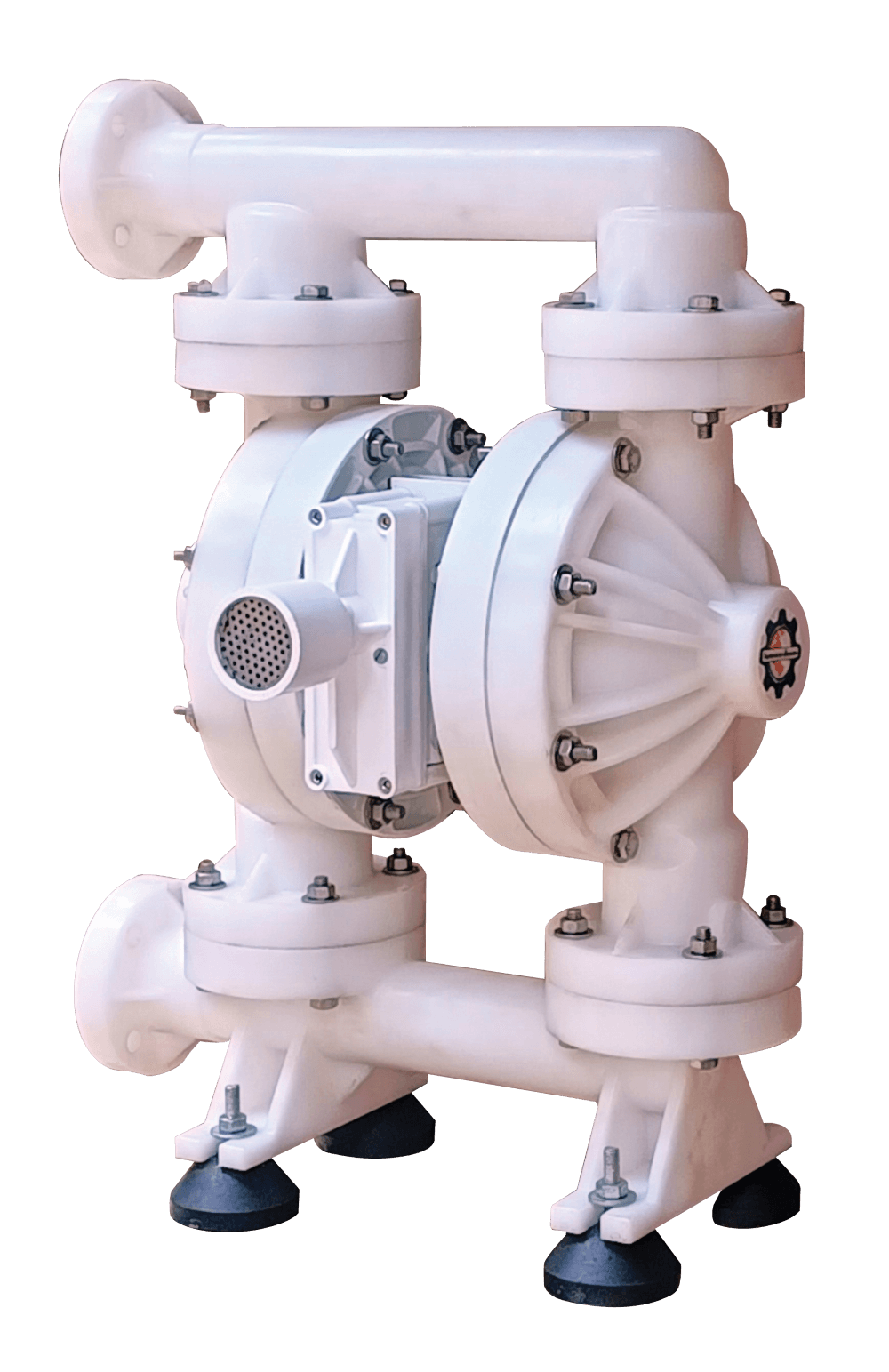

| 1) Model No : | PPT – 0.5 |
| 2) Fluid Inlet & Outlet size: | 12.7 mm x 12.7 mm (1/2” BSP threaded end connection) |
| 3) Air Inlet size: | 1/4” BSP (6.3 mm) |
| 4) Maximum Head: | Up to 50 meters on 1000 kg/m3 density. |
| 5) Maximum Flow: | 40 liter per minute on 1000 kg/m3 density. |
| 6) Max density can work: | up to 1800 kg/m3 |
| 7) Media: | HCL, diluted acid, sodium hypochlorite, sodium hydroxide etc… |
| 8) Air pressure required: | 7 bar (100 psi) pressure required to work on full efficiency. |
| 9) Per stroke Displacement: | 0.5 LPM at 7 bar pressure, assuming a material of 1 density |
| 10) Wetted Part: | Polypropylene |
| 11) Diaphragm: | Teflon / Neoprene |
| 12) Diaphragm Size: | OD-150 mm |
| 13) Backup Diaphragm: | Santoprene |
| 14) NRV Ball: | Teflon / Neoprene |
| 15) Construction Type: | Bolted |
| 16) Negative Suction: | Maximum capacity 3 meter and 7 meter with foot valve |
| 17) Max Solid particle: | 3.5 mm |
| 18) Temperature can bare: | 4° C to 70° C. |
| 19) Pump Weight: | 6 Kg |
| 20) Packing Size (lxbxh): | 26 cm x 28 cm x 33 cm |
| 21) Delivery: | One week |
